Low Voltage Computer Cable

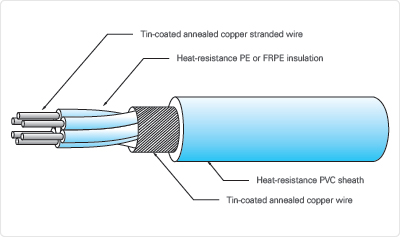

UL Style 2835
- Application
- - Use No. 1A: Internal wiring in class 2 circuits of electronic equipment where each end is terminated in connectors.
- Use No. 1B: Cables - using 30 mils or greater jacket thickness only : External interconnection or internal wiring in class 2 circuits of electronic equipment where each end is terminated in connectors.
- Use No. 2A: Internal wiring in class 2 circuits of electronic equipment where not routed along walls, floors, or other abuse areas.
- Use No. 2B: Cables - using 30 mils or greater jacket thickness only : External interconnection or internal wiring in class 2 circuits.
- Characteristics
- - Rating temp. & Volt : UL 60°C 30V
- Flammability : VW-1, FT1, JQA -F-
- Small outer diameter saves space. Exellent flexibility and easy wiring.

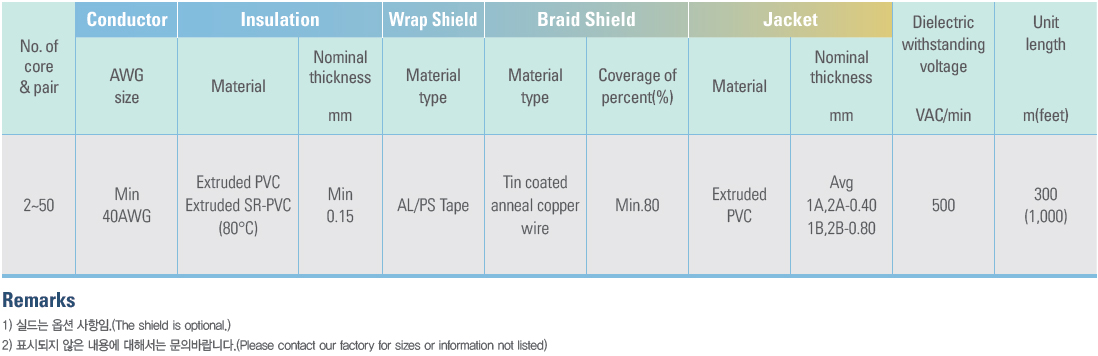

Specifications
