산업현장의 기계설비 제어반 전원공급용 Core Cables
UL style 2516

Application
생산 산업현장의 컨베이어 시스템과 생산라인, 산업설비 등 주전원 공급용으로 사용하기에 적합하다.
Characteristics
- 절연체에 내열성이 뛰어난 고온용 PVC 를 사용하였기에 장시간 가동시 내구성이 뛰어나다.
- 열에 의한 경화성이 낮으며 내열성이 탁월하여 전기적 특성이 매우 우수하다.
- 특별한 제조구성에 의한 제조 방법으로 높은 차폐율로서 EMI 방지 효과가 뛰어나다.
- 쉬스체에 특수 PVC를 적용하여 내한성, 내유성, 내마모성이 뛰어나다.
- 유전율이 우수한 절연체를 사용하여 전기적 특성이 우수하다.

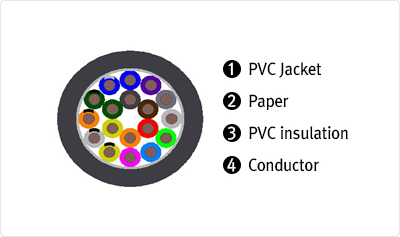

- 절연선심 : UL style 1015
Specifications
CATALOG NUMBER AWG Size No. of Core Construction
(No./mm)		 Insulation Covering Jacket Current
Max.(A)		 resistance
(Ω/km)		 capacitance
[pF/m]		 About
weight
100m/Kg
Thick
(mm)		 Overall
Dia.(mm)		 Thick
(mm)		 Overall
Dia.(mm)
C2802C-080061 28 2 7/0.127 0.8 1.99 Paper OR Fabric 1.0 6.1 3.3 210 100 3.4
C2803C-080068 3 1.2 6.8 3.1 4.6
C2804C-080073 4 1.2 7.3 2.7 5.4
C2805C-080079 5 1.2 7.9 2.5 6.3
C2806C-080085 6 1.2 8.5 2.3 7.3
C2807C-080085 7 1.2 8.5 2.1 8.3
C2808C-080091 8 1.2 9.1 2 9.2
C2809C-080097 9 1.2 9.7 1.9 10.2
C2810C-080105 10 1.2 10.5 1.9 11.2
C2822C-080112 12 1.4 11.2 1.8 13.9
C2814C-080117 14 1.4 11.7 1.6 15.5
C2815C-080119 15 1.4 11.9 1.6 16.3
C2602C-080067 26 2 7/0.16 0.80 2.09 Paper OR Fabric 1.2 6.7 4.2 132 100 4.2
C2603C-080070 3 1.2 7.0 4 5.0
C2604C-080075 4 1.2 7.5 3.5 5.9
C2605C-080081 5 1.2 8.1 3.2 6.9
C2606C-080088 6 1.2 8.8 3 8.0
C2607C-080088 7 1.2 8.8 2.7 9.1
C2608C-080094 8 1.2 9.4 2.6 10.2
C2609C-080100 9 1.2 10.0 2.5 11.3
C2610C-080113 10 1.4 11.3 2.4 13.4
C2622C-080116 12 1.4 11.6 2.3 15.4
C2614C-080121 14 1.4 12.1 2.1 17.2
C2615C-080124 15 1.4 12.4 2.1 18.1
C2402C-080069 24 2 11/0.16 0.80 2.21 Paper OR Fabric 1.2 6.9 5.6 84.1 110 4.6
C2403C-080073 3 1.2 7.3 5.3 5.5
C2404C-080078 4 1.2 7.8 4.6 6.6
C2405C-080085 5 1.2 8.5 4.2 7.7
C2406C-080091 6 1.2 9.1 4 9.0
C2407C-080091 7 1.2 9.1 3.7 10.3
C2408C-080102 8 1.4 10.2 3.5 12.5
C2409C-080109 9 1.4 10.9 3.3 13.8
C2410C-080117 10 1.4 11.7 3.2 15.1
C2422C-080121 12 1.4 12.1 3.1 17.4
C2414C-080129 14 1.5 12.9 2.8 20.1
C2415C-080132 15 1.5 13.2 2.7 21.2
C2202C-080072 22 2 17/0.16 0.80 2.36 Paper OR Fabric 1.2 7.2 7.3 54.4 120 5.1
C2203C-080077 3 1.2 7.7 6.8 6.4
C2204C-080083 4 1.2 8.3 6 7.6
C2205C-080090 5 1.2 9.0 5.5 8.9
C2206C-080108 6 1.4 10.8 5.1 11.4
C2207C-080108 7 1.4 10.8 4.7 13.0
C2208C-080110 8 1.4 11.0 4.5 14.6
C2209C-080115 9 1.4 11.5 4.2 16.1
C2210C-080127 10 1.5 12.7 4.1 18.2
C2222C-080130 12 1.5 13.0 4 21.1
C2214C-080136 14 1.5 13.6 3.6 23.7
C2215C-080139 15 1.5 13.9 3.5 25.0
C2002C-080077 20 2 26/0.16 0.80 2.55 Paper OR Fabric 1.2 7.7 9.7 34.8 120 6.5
C2003C-080081 3 1.2 8.1 9.1 7.7
C2004C-080088 4 1.2 8.8 8 9.3
C2005C-080099 5 1.4 9.9 7.3 11.9
C2006C-080107 6 1.4 10.7 6.9 13.7
C2007C-080107 7 1.4 10.7 6.3 15.9
C2008C-080116 8 1.5 11.6 5.9 18.5
C2009C-080124 9 1.5 12.4 5.6 20.7
C2010C-080134 10 1.5 13.4 5.5 23.1
C2022C-080140 12 1.6 14.0 5.3 27.2
C2014C-080147 14 1.6 14.7 4.8 30.5
C2015C-080150 15 1.6 15.0 4.7 32.2
C1802C-080082 18 2 41/0.16 0.80 2.81 Paper OR Fabric 1.2 8.2 12.8 21.5 130 7.7
C1803C-080087 3 1.2 8.7 12.1 9.4
C1804C-080098 4 1.4 9.8 10.6 12.2
C1805C-080106 5 1.4 10.6 9.7 14.5
C1806C-080114 6 1.4 11.4 9.1 16.8
C1807C-080114 7 1.4 11.4 8.3 19.8
C1808C-080125 8 1.5 12.5 7.9 23.1
C1809C-080134 9 1.5 13.4 7.4 25.8
C1810C-080146 10 1.6 14.6 7.3 29.5
C1822C-080151 12 1.6 15.1 7 34.1
C1814C-080158 14 1.6 15.8 6.4 38.4
C1815C-080166 15 1.8 16.6 6.2 42.1
C1602C-080087 16 2 26/0.254 0.80 3.09 Paper OR Fabric 1.2 8.7 17.1 14.1 140 9.1
C1603C-080096 3 1.4 9.6 16.1 12.6
C1604C-080104 4 1.4 10.4 14.1 15.6
C1605C-080113 5 1.4 11.3 12.9 18.7
C1606C-080124 6 1.5 12.4 12.1 22.3
C1607C-080124 7 1.5 12.4 11.1 24.7
C1608C-080134 8 1.5 13.4 10.5 27.9
C1609C-080145 9 1.6 14.5 9.9 31.6
C1610C-080161 10 1.8 16.1 9.7 36.5
C1622C-080166 12 1.8 16.6 9.3 42.1
C1614C-080174 14 1.8 17.4 8.5 47.7
C1615C-080178 15 1.8 17.8 8.3 50.6
C1402C-080100 14 2 41/0.254 0.80 3.48 Paper OR Fabric 1.4 10.0 23.7 9.0 140 13.7
C1403C-080105 3 1.4 10.5 22.3 18.0
C1404C-080116 4 1.5 11.6 19.5 23.0
C1405C-080128 5 1.6 12.8 17.8 28.3
C1406C-080138 6 1.6 13.8 16.7 33.0
C1407C-080138 7 1.6 13.8 15.3 36.9
C1408C-080153 8 1.8 15.3 14.5 43.1
C1409C-080164 9 1.8 16.4 13.7 48.0
C1410C-080181 10 2.0 18.1 13.4 54.9
C1422C-080186 12 2.0 18.6 12.8 63.7
C1414C-080196 14 2.0 19.6 11.7 72.5
C1415C-080204 15 2.2 20.4 11.4 78.8
C1202C-080111 12 2 65/0.254 0.80 3.98 Paper OR Fabric 1.5 11.1 31.6 5.7 150 18.0
C1203C-080117 3 1.5 11.7 29.7 24.0
C1204C-080130 4 1.6 13.0 26 30.8
C1205C-080141 5 1.6 14.1 23.8 37.2
C1206C-080157 6 1.8 15.7 22.3 45.1
C1207C-080157 7 1.8 15.7 20.5 50.5
C1208C-080173 8 2.0 17.3 19.4 58.8
C1209C-080185 9 2.0 18.5 18.2 65.5
C1210C-080204 10 2.2 20.4 17.9 74.6
C1222C-080211 12 2.2 21.1 17.1 86.8
C1214C-080221 14 2.2 22.1 15.6 99.1
C1215C-080230 15 2.4 23.0 15.3 107.4
C1002C-080124 10 2 105/0.254 0.80 4.60 Paper OR Fabric 1.5 12.4 42.9 3.5 160 24.0
C1003C-080133 3 1.6 13.3 40.4 33.2
C1004C-080145 4 1.6 14.5 35.4 42.2
C1005C-080162 5 1.8 16.2 32.3 52.8
C1006C-080180 6 2.0 18.0 30.3 63.7
C1007C-080180 7 2.0 18.0 27.8 71.7
C1008C-080194 8 2.0 19.4 26.3 81.3
C1009C-080213 9 2.2 21.3 24.8 92.7
C1010C-080234 10 2.4 23.4 24.3 105.1
C1022C-080241 12 2.4 24.1 23.3 123.0
C1014C-080257 14 2.6 25.7 21.2 143.1
C1015C-080263 15 2.6 26.3 20.7 152.0
C0802C-110167 8 2 7/24/0.254 1.10 6.51 Paper OR Fabric 1.8 16.7 59.3 2.2 125 37.7
C0803C-110177 3 1.8 17.7 55.8 51.2
C0804C-110198 4 2.0 19.8 48.9 67.1
C0805C-110221 5 2.2 22.1 44.7 83.4
C0806C-110244 6 2.4 24.4 41.9 100.2
C0807C-110244 7 2.4 24.4 38.4 112.9
C0808C-110268 8 2.6 26.8 36.3 130.4
C0809C-110292 9 2.8 29.2 34.2 148.0
C0810C-110322 10 3.0 32.2 33.5 167.2
C0602C-150208 6 2 7/38/0.25 1.50 8.42 Paper OR Fabric 2.0 20.8 80.1 1.4 130 57.2
C0603C-150221 3 2.0 22.1 75.4 75.0
C0604C-150247 4 2.2 24.7 66 97.2
C0605C-150275 5 2.4 27.5 60.3 120.8
C0606C-150309 6 2.8 30.9 56.5 149.4
C0402C-150270 4 2 7/60/0.254 1.50 9.81 Paper OR Fabric 2.2 27.0 106.7 0.9 140 85.0
C0403C-150259 3 2.4 25.9 100.4 118.5
C0404C-150289 4 2.6 28.9 87.9 153.6
C0405C-150325 5 3.0 32.5 80.4 192.3
C0406C-150358 6 3.2 35.8 75.3 229.3
C0202C-150287 2 2 19/35/0.254 1.50 11.67 Paper OR Fabric 2.8 28.7 146.6 0.6 120 122.2
C0203C-150309 3 2.8 30.9 138 172.9
C0204C-150347 4 3.2 34.7 120.7 228.7
